Extreme Terrain.
Zero Compromise.

Built for the world’s most demanding missions.

Ridgeline-C10

Scenario: One-Way ATTACK

Main Key Parameters

• ➢ Complete Machine Weight (with Battery): 15 kg
• ➢ Operating Temperature: -10 ~ 40 °C
• ➢ Maximum Payload: 20 kg
• ➢ Movement Speed: 0~3 m/s
• ➢ Battery Life: 5.5 h (No load), 2 h (Full load)
• ➢ Jumping Distance: ≥2 m (No load), 1 m (7 kg load)
• ➢ Supports secondary development with expansion interfaces

Ridgeline-R10

Scenario: One-Way ATTACK

Main Key Parameters

• ➢ Complete Machine Weight (with Battery): 20 kg
• ➢ Maximum Payload: 20 kg
• ➢ Movement Speed: 0~4 m/s
• ➢ Battery Life: 3 h (No load), 1 h (Full load)
• ➢ Maximum Climbing Angle: 35°
• ➢ Obstacle-Crossing Height: 50 cm

Ridgeline-S10

Scenario: Scouting

Main Key Parameters

• ➢ Complete Machine Weight (with Battery): 20 kg
• ➢ Operating Temperature: -20 ~ 55 °C
• ➢ Payload: 8 kg
• ➢ Movement Speed: 0~5 m/s
• ➢ Battery Life: 3 h (No load), 2 h (Full load)
• ➢ Maximum Climbing Angle: 30°
• ➢ Obstacle-Crossing Height: 50 cm
• ➢ Visual Sensors: 2× 128-line ultra-wide-angle LiDARs, 4× wide-angle cameras

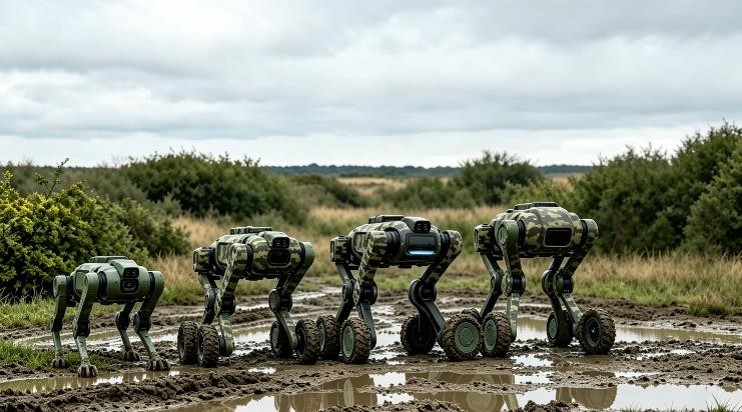

Ridgeline-M20

Scenario: Scouting, Patrolling

Main Key Parameters

• ➢ Complete Machine Weight (with Battery): 35 kg
• ➢ Operating Temperature: -30 ~ 55 °C
• ➢ Payload: 15 kg
• ➢ Movement Speed: 0~5 m/s
• ➢ Battery Life: 5 h (No load), 2.5 h (Full load)
• ➢ Maximum Climbing Angle: 45°
• ➢ Obstacle-Crossing Height: 80 cm
• ➢ Visual Sensors: 2× 128-line ultra-wide-angle LiDARs, 2× wide-angle cameras

Ridgeline-X

Scenario: Logistics, Scouting, Patrolling

Main Key Parameters

• ➢ Mobility Configuration: Wheeled, Legged, and AGV Modes
• ➢ Complete Machine Weight (with Battery): 50 kg
• ➢ Payload: 200 kg
• ➢ Movement Speed: 0~8 m/s
• ➢ Battery Life: 15 h (No load), 5 h (Full load)
• ➢ Sensor Configuration: LiDAR + Cameras + IMU / Multi-Sensor Fusion

Configurable Mission Payloads

We provide detailed secondary development manuals, joint-level SDKs for motion control algorithm development, and robot URDF models. We also supply program interfaces along with supporting documentation to facilitate the development of high-level applications that access motion control, perception, mapping, localization and navigation functions, alongside dedicated technical support for all secondary development requirements.
